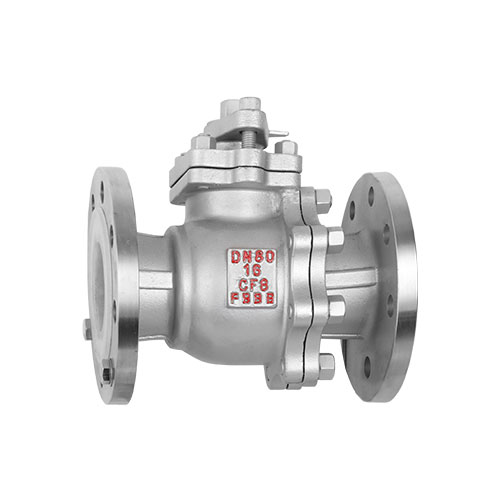

衬氟球阀是用带圆形通孔的球体作启闭件，球体随阀杆绕阀体中心线旋转以实现阀门开启和关闭。采用特殊的模压工艺，使密封面致密良好，加之V型PTFE填料组合使阀门达到零泄漏;球体与阀杆铸为一体，杜绝了由于压力变化引起阀杆冲出承压件内的可能性，根本保证使用中的安全性;采用全塑料衬里工艺，耐介质的强腐蚀。
驱动：衬氟球阀按驱动方式有手动衬氟球阀、蜗轮转动衬氟球阀、气动衬氟球阀、电动衬氟球阀等。
特点：
1.采用氟塑料衬里层的球阀，具有极高的化学稳定性，适用于任何强腐蚀性化学介质;
2.采用全通浮动球阀结构，在整个压力范围内进行元泄漏关闭，便便于管路系统在通球扫线和管路维护。
用途：衬氟球阀为控制各种强腐蚀性介质的启闭而进行的专业设计，广泛使用于石油，化工，染化，农药，制酸制碱等行业，是目前防腐阀门最理想的选择
| 公称通径 | 主要尺寸 | 参考值 | ||||||||
| ND | NPS | L | D | D1 | D2 | b | f | Z-фd | D0 | H |
| PN1.0MPa | ||||||||||
| 15 | 1/2" | 140 | 95 | 65 | 45 | 3 | 15 | 4-14 | 140 | 90 |
| 20 | 3/4" | 140 | 105 | 75 | 55 | 3 | 17 | 4-14 | 140 | 100 |
| 25 | 1" | 150 | 115 | 85 | 65 | 3 | 17 | 4-14 | 180 | 105 |
| 32 | 11/4" | 165 | 140 | 100 | 75 | 3 | 19 | 4-18 | 180 | 120 |
| 40 | 11/2" | 180 | 150 | 110 | 85 | 3 | 19 | 4-18 | 225 | 140 |
| 50 | 2" | 200 | 165 | 125 | 100 | 3 | 21 | 4-18 | 225 | 150 |
| 65 | 21/2" | 220 | 185 | 145 | 120 | 3 | 21 | 4-18 | 360 | 160 |
| 80 | 3" | 250 | 200 | 160 | 135 | 3 | 21 | 8-18 | 420 | 215 |
| 100 | 4" | 280 | 220 | 180 | 155 | 3 | 23 | 8-18 | 420 | 240 |
| 125 | 5" | 320 | 250 | 210 | 185 | 4 | 24 | 8-18 | 520 | 250 |
| 150 | 6" | 360 | 285 | 240 | 210 | 4 | 26 | 8-23 | 520 | 290 |
| 200 | 8" | 400 | 340 | 295 | 265 | 4 | 26 | 8-23 | 640 | 340 |
| 250 | 10" | 450 | 395 | 350 | 320 | 4 | 28 | 12-33 | 640 | 380 |
| PN1.6MPa | ||||||||||
| 15 | 1/2" | 140 | 95 | 65 | 45 | 3 | 15 | 4-14 | 140 | 90 |
| 20 | 3/4" | 140 | 105 | 75 | 55 | 3 | 17 | 4-14 | 140 | 100 |
| 25 | 1" | 150 | 115 | 85 | 65 | 3 | 17 | 4-14 | 180 | 105 |
| 32 | 11/4" | 165 | 140 | 100 | 75 | 3 | 19 | 4-18 | 180 | 120 |
| 40 | 11/2" | 180 | 150 | 110 | 85 | 3 | 19 | 4-18 | 225 | 140 |
| 50 | 2" | 200 | 165 | 125 | 100 | 3 | 21 | 4-18 | 225 | 150 |
| 65 | 21/2" | 220 | 185 | 145 | 120 | 3 | 21 | 4-18 | 360 | 160 |
| 80 | 3" | 250 | 200 | 160 | 135 | 3 | 21 | 8-18 | 420 | 215 |
| 100 | 4" | 280 | 220 | 180 | 155 | 3 | 23 | 8-18 | 420 | 240 |
| 125 | 5" | 320 | 250 | 210 | 185 | 4 | 24 | 8-18 | 520 | 250 |
| 150 | 6" | 360 | 285 | 240 | 210 | 4 | 26 | 8-23 | 520 | 290 |
| 200 | 8" | 400 | 340 | 295 | 265 | 4 | 26 | 12-23 | 640 | 340 |
| 250 | 10" | 450 | 405 | 350 | 320 | 4 | 28 | 12-26 | 640 | 380 |
| 公称通径 | 主要尺寸 | 参考值 | ||||||||
| ND | NPS | L | D | D1 | D2 | b | f | Z-фd | D0 | H |
| PN1.0MPa | ||||||||||
| 15 | 1/2" | 140 | 95 | 65 | 45 | 3 | 15 | 4-14 | 140 | 90 |
| 20 | 3/4" | 140 | 105 | 75 | 55 | 3 | 17 | 4-14 | 140 | 100 |
| 25 | 1" | 150 | 115 | 85 | 65 | 3 | 17 | 4-14 | 180 | 105 |
| 32 | 11/4" | 165 | 140 | 100 | 75 | 3 | 19 | 4-18 | 180 | 120 |
| 40 | 11/2" | 180 | 150 | 110 | 85 | 3 | 19 | 4-18 | 225 | 140 |
| 50 | 2" | 200 | 165 | 125 | 100 | 3 | 21 | 4-18 | 225 | 150 |
| 65 | 21/2" | 220 | 185 | 145 | 120 | 3 | 21 | 4-18 | 360 | 160 |
| 80 | 3" | 250 | 200 | 160 | 135 | 3 | 21 | 8-18 | 420 | 215 |
| 100 | 4" | 280 | 220 | 180 | 155 | 3 | 23 | 8-18 | 420 | 240 |
| 125 | 5" | 320 | 250 | 210 | 185 | 4 | 24 | 8-18 | 520 | 250 |
| 150 | 6" | 360 | 285 | 240 | 210 | 4 | 26 | 8-23 | 520 | 290 |
| 200 | 8" | 400 | 340 | 295 | 265 | 4 | 26 | 8-23 | 640 | 340 |
| 250 | 10" | 450 | 395 | 350 | 320 | 4 | 28 | 12-33 | 640 | 380 |
| PN1.6MPa | ||||||||||
| 15 | 1/2" | 140 | 95 | 65 | 45 | 3 | 15 | 4-14 | 140 | 90 |
| 20 | 3/4" | 140 | 105 | 75 | 55 | 3 | 17 | 4-14 | 140 | 100 |
| 25 | 1" | 150 | 115 | 85 | 65 | 3 | 17 | 4-14 | 180 | 105 |
| 32 | 11/4" | 165 | 140 | 100 | 75 | 3 | 19 | 4-18 | 180 | 120 |
| 40 | 11/2" | 180 | 150 | 110 | 85 | 3 | 19 | 4-18 | 225 | 140 |
| 50 | 2" | 200 | 165 | 125 | 100 | 3 | 21 | 4-18 | 225 | 150 |
| 65 | 21/2" | 220 | 185 | 145 | 120 | 3 | 21 | 4-18 | 360 | 160 |
| 80 | 3" | 250 | 200 | 160 | 135 | 3 | 21 | 8-18 | 420 | 215 |
| 100 | 4" | 280 | 220 | 180 | 155 | 3 | 23 | 8-18 | 420 | 240 |
| 125 | 5" | 320 | 250 | 210 | 185 | 4 | 24 | 8-18 | 520 | 250 |
| 150 | 6" | 360 | 285 | 240 | 210 | 4 | 26 | 8-23 | 520 | 290 |
| 200 | 8" | 400 | 340 | 295 | 265 | 4 | 26 | 12-23 | 640 | 340 |
| 250 | 10" | 450 | 405 | 350 | 320 | 4 | 28 | 12-26 | 640 | 380 |
·
